LED Video Wall Panel Display

Brand Beloong

Product origin China

Delivery time 2-15days

Supply capacity 1000/months

LED Video Wall High Brightness:
>4500cd/sqm, The screen picture can be seen far away, and won't result in light pollution in the same time.
led wall screen Super Light and Slim:
Easy for installation and disassemblely. Even one person can accomplish that work. which can reduce by 70% shipping cost and installation cost.
LED Video Wall Multi Occasion Use:
The display can be used in various occasions,such as stadium, cinema, theatre, hospital,hotel,museum,etc.

Download

LED Video Wall Panel Display

 LED Video Wall Panel Display


led video wall



Pixel Pitch(mm)
2.5 mm
Pixel Configuration
SMD 2020
Pixel Matrix per Panel(dots)
192 x 192 dots
Pixel Density(dots/m²)
160,000 dots/m²
Cabinet Size(mm)
480 x 480 x 63mm
Panel Dimension(W×H×D)
( 18.9”×18.9”×2.5”)
Panel Material
Die-casting Aluminum
Panel Weight(kg/panel)
5.1 kg/panel (12.3 lb/panel )
Color Depth(Bit)
14 bit
Refresh Rate(Hz)
≥2880Hz
Driver Method/scan
Scan 1/32
Brightness(nits)
1000nits, adjustable
Horizontal Viewing Angle(°)
160 °
Vertical Viewing Angle(°)
160 °
AC Power Input(V)
AC110V~ 220V ±10%
AC Power Frequency(Hz)
50 ~ 60 Hz
Max. Power(W/m²)
520 W/m²
Avg. Power(W/m²)
170 W/m²
Storage/Operating Humidity(RH )
10% ~ 90%RH
IP Rating(IP )
IP30 / IP30
Lifetime Typical Value(Hrs)
100,000 Hrs

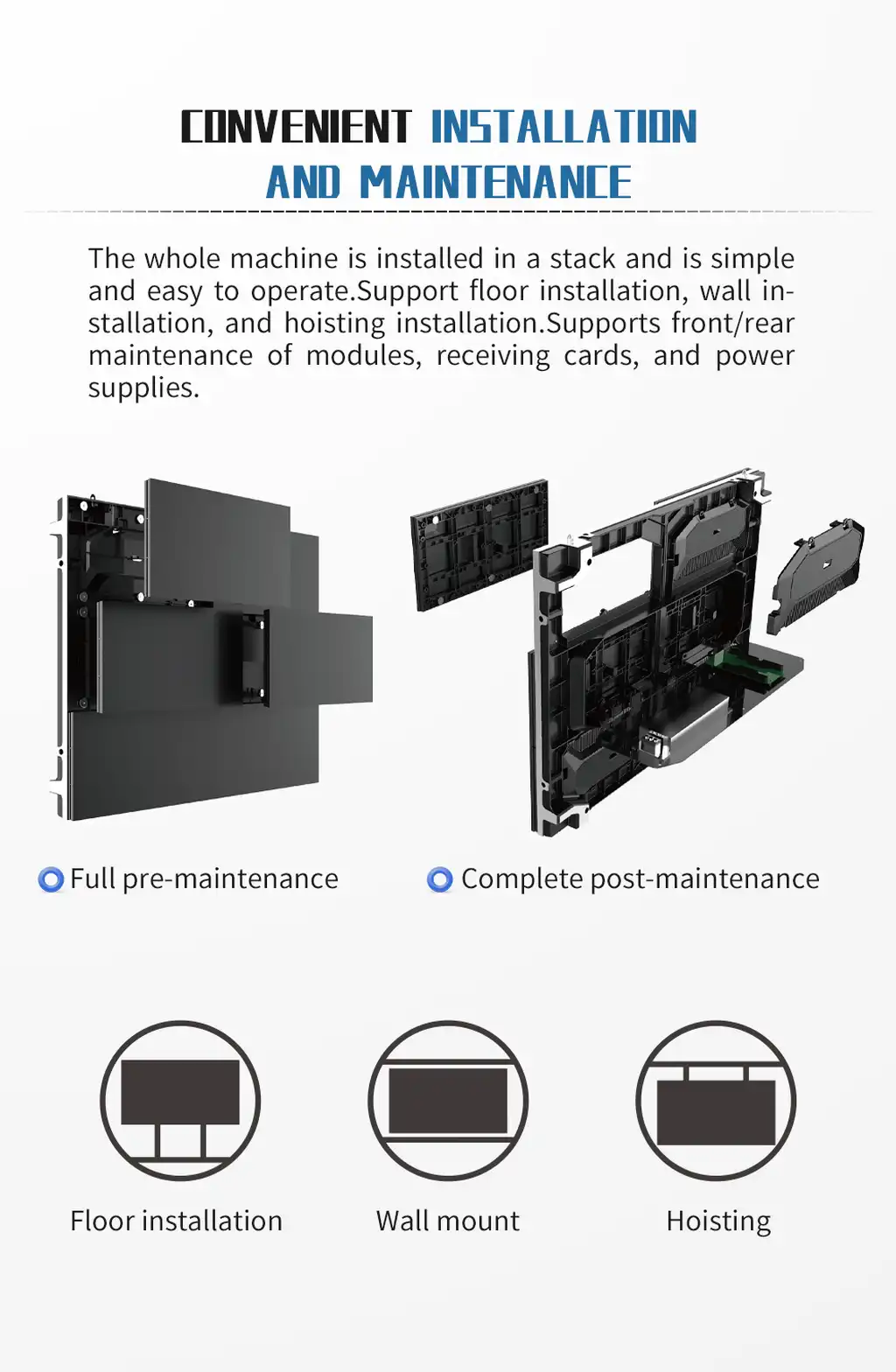

Installation Type
Fix , Front installation
Maintenance Method
Front & Rear serviceable
Certifications
CE, Rohs, FCC, TUV-CE,ETL



led wall screen


1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /lcd screen for you choose.


video wall


Beloong Opto- Electronic Technology Co.Ltd,

has been in terminal display equipment since 2005. We research and manufacture splicing screens, advertising players, LCD Monitor, Interactive touch all in one pc, Bar Lcd Advertising Screen, smart whiteboard, gym mirror and so on.
